Will a Robot Vacuum Dock Fit? Measure Access, Not Just the Base

Start with the exact dock, not a universal clearance

Write down the robot model and the dock supplied with your particular package. Find its installation diagram and maintenance instructions. Record the dock dimensions, front and side clearances, and any overhead access requirement separately. Keep the diagram’s measurement starting points; a distance from the wall is not interchangeable with a gap from the dock’s front edge.

Eufy’s placement guide directs readers to their model’s manual because dock shapes and navigation systems vary. If a diagram does not make the starting point clear, ask the manufacturer before treating a tight recess as suitable.

Measure the floor space and the approach

Use a tape measure you already own. A metric measuring ruler can help with short gaps, but a tape measure is easier for the full approach area. Buy a measuring tool only if you lack one that can cover the required distances.

• Sketch the dock’s installed footprint, including any tray or ramp shown in its installation diagram.
• Measure the required clear spaces from the edges specified in that diagram. Note skirting boards, furniture legs and other projections that reduce the usable opening.
• Open nearby doors and pull chairs into their normal positions. Check the approach in that everyday arrangement, not only after clearing the room.

Roborock’s placement note specifies a hard, flat floor and placement flat against a wall. Its rendered article does not identify an exact model, so do not borrow its numeric clearances for an unrelated dock. Eufy’s general guide also calls for a hard, level, dry indoor surface and routing the cable along the wall rather than across a walkway.

Check the space needed to open and empty it

Measure vertically from the floor to the lowest obstruction above the proposed position. Then check the actual lid movement and tank-removal direction. A lid that opens is not proof that a tank can come out.

For example, Eufy’s X10 Pro Omni dimensions document lists a station measuring 365 × 480 × 460 mm in length, width and height. Its open-lid height is about 662 mm from the station bottom, but Eufy recommends at least 850 mm total height clearance for comfortable water-tank access. That is a total height, not an extra 850 mm above the lid, and it applies to this model. The same document says not to put this station inside a wardrobe because moisture can make the wardrobe damp.

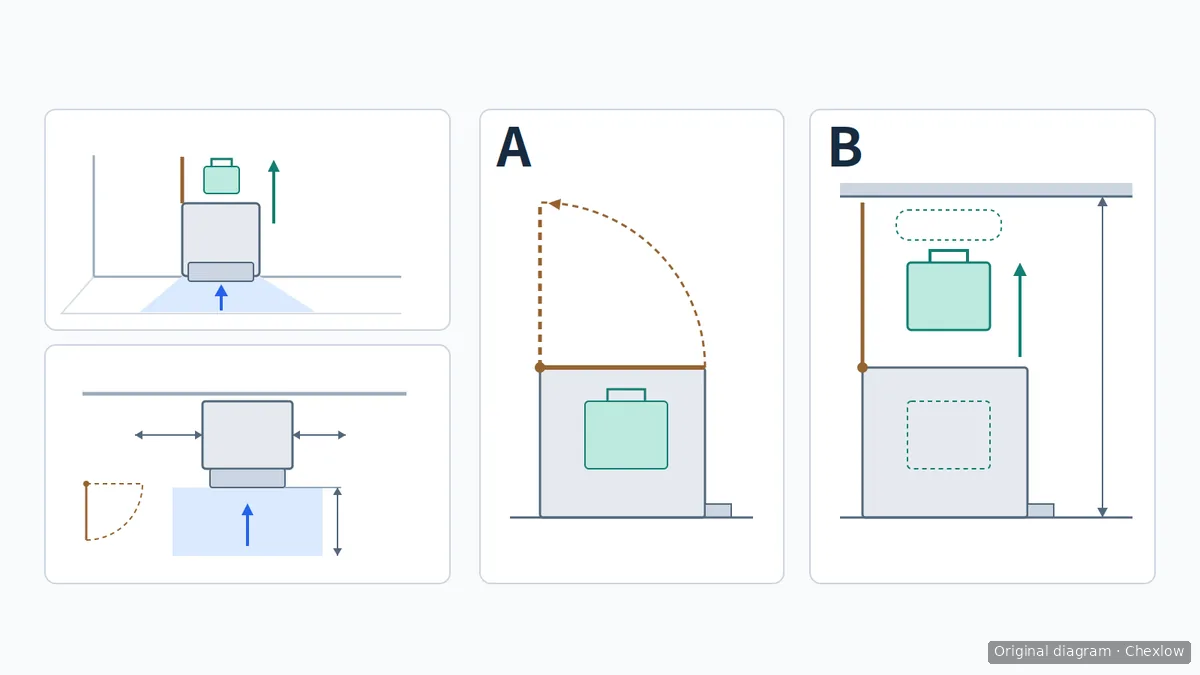

Read A before B: in A, the tank stays seated while the rear-hinged lid moves from the solid closed position to the dashed open position along the dashed arc. In B, the lid stays fully open; the solid tank is lifted from its dashed seated position, with a separate dashed outline for hand space. The top-view arrows measure from the dock’s sides and the tray’s front edge; the door swing stays outside the blue approach area. The height arrow runs from the floor to the underside of the overhead obstruction, not from the lid. This diagram is not to scale: colored areas and arrow lengths do not specify required distances or minimum heights. Use your exact model’s installation and access requirements.

The diagram separates the spaces to check; it is not a scale drawing of a product. With an existing dock, follow its user instructions and try the normal tank or dust-bag removal motion. Before buying, check that motion in the maintenance instructions or a demonstration. Include room for your hand and for carrying the removed container away.

Keep the location only if daily use works

Once installed according to the manual, run a complete cleaning cycle and watch the return, as Eufy’s placement guide recommends. Check access again with doors and chairs in their usual positions. A successful return does not cancel a clearance requirement in the manual.

Our practical decision rule is to keep the position only when it meets the installation instructions, leaves the approach usable and lets you perform routine upkeep without dragging the dock out. If a measurement is unclear, confirm it with the manufacturer; if the space fails, measure another location before buying accessories to work around it.

If you have not bought a robot and cannot find a suitable permanent position, revisit whether a cordless or robot vacuum should be your first purchase. That is a change in cleaning plan, not a reason to replace a working cleaner automatically.
